Version: v3

Direct Integration

The values for several fields—including tracking_type—are different in CAPI v3. Learn how to migrate from v2.

Prerequisites and considerations​

Before you start, you’ll need to:

You should also be familiar with the CAPI requirements and product functionality:

  • CAPI supports a variety of sources, including web, app, and offline events.
  • There’s a rate limit of 1,000 requests/second, 10,000 events/second, and 1,000 events/request.
  • We recommend sending conversions via CAPI as close to real-time as possible, but events must be sent within seven days after they occur.
  • We require event deduplication if you use the Reddit Pixel and Conversions API together (which we recommend for best performance). The event with more event metadata and match keys will be prioritized. Deduplication is not required when the event is only sent through one integration type. Learn more about event deduplication.
  • Some match keys (unique event and user identifiers) are required for each conversion event to ensure accurate matching and attribution. We recommend sending as many identifiers as possible to help improve attribution accuracy and fuel performance.
  • Your use of CAPI is subject to the agreements in the Ads API and Reddit Business Tool terms.

1. Retrieve your Pixel ID​

  1. In the Events Manager, select Configure data source and choose Conversions API > Set up manually. If you haven’t set up CAPI or the Pixel yet, select Conversions API Only instead.

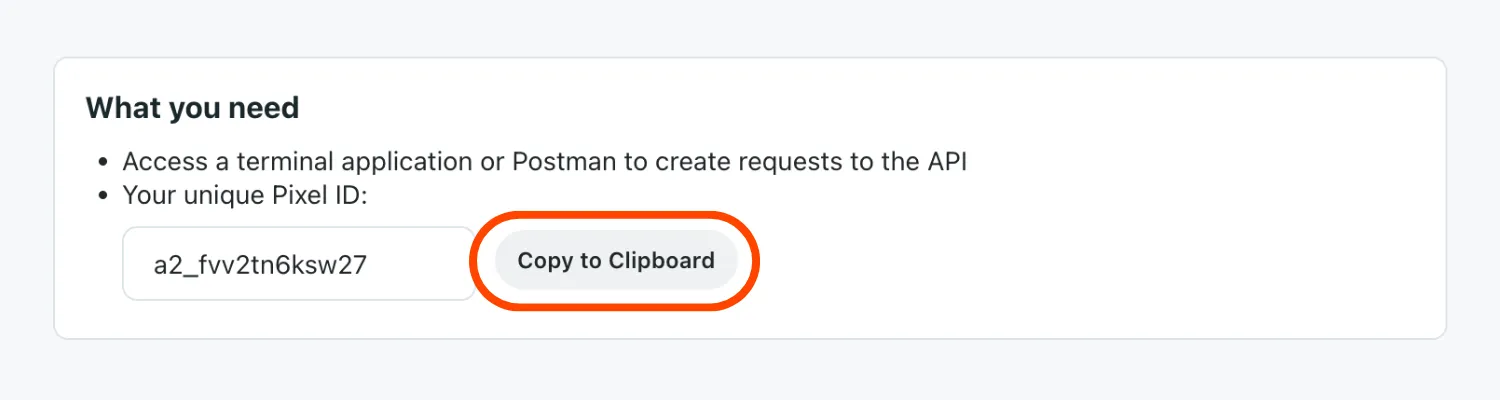

  2. Select Copy to Clipboard to save your Pixel ID to your clipboard. Copy Pixel ID
  3. Paste the value in a safe place.

2. Generate a conversion access token​

Learn more about conversion access tokens.

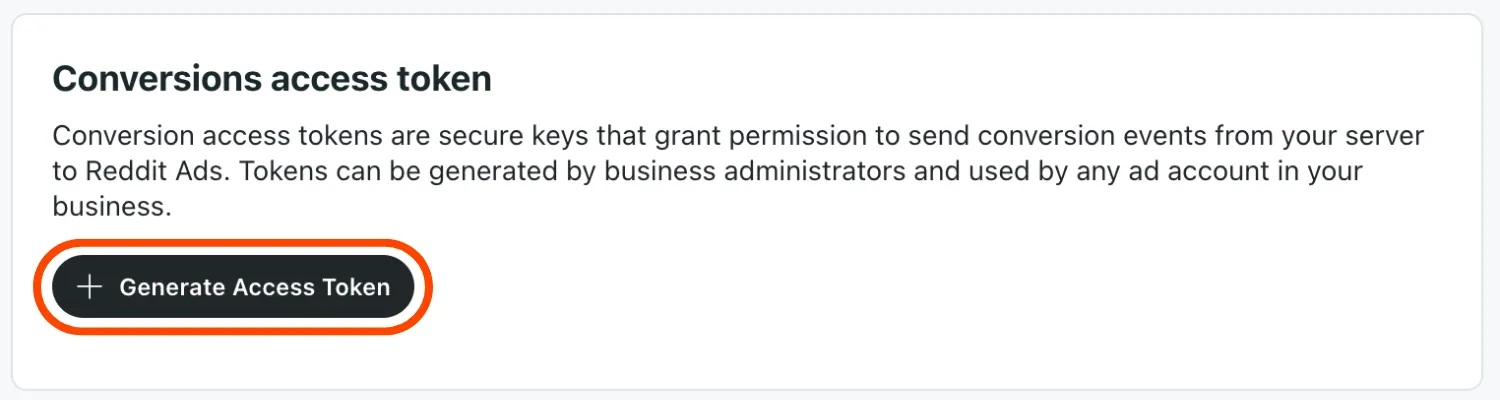

  1. Select Generate Access Token.
    Generate token
  2. Give your token a name, like My Reddit Conversion Token.
  3. Select Generate to create your token.

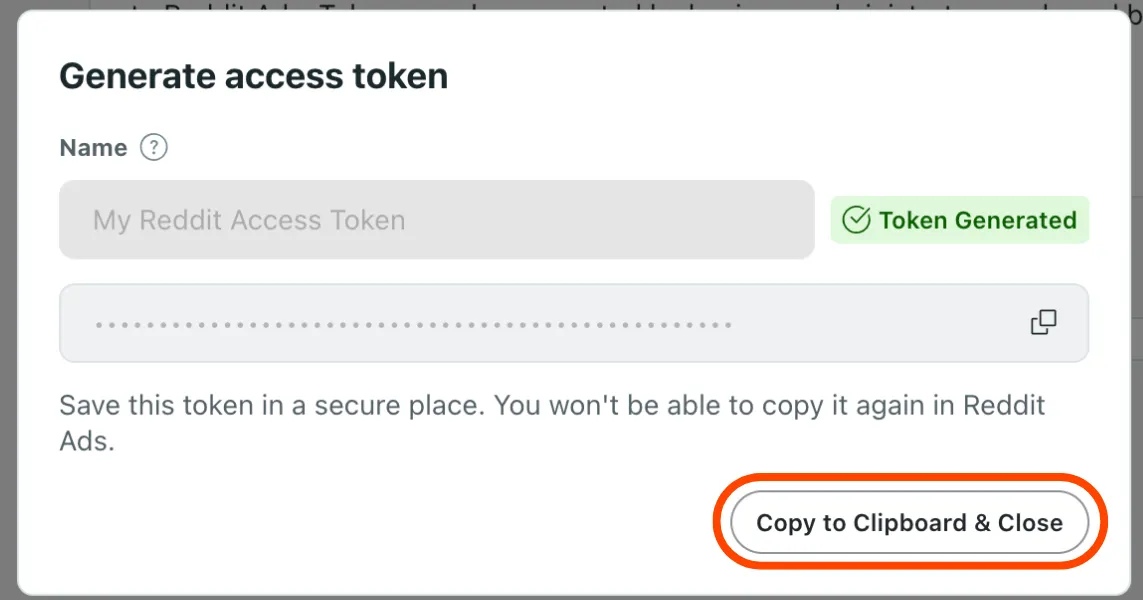

  4. Select Copy to Clipboard & Close.

    This value cannot be retrieved later. You’ll need to generate a new token.

    Copy access token
  5. Paste the value in a safe place.

3. Set up events​

Access your website’s server and configure conversion events to the following endpoint:

Post Conversion Events

url
Fill all fields
https://ads-api.reddit.com/api/v3/pixels//conversion_events

You can send standard conversion events, custom conversion events, or both. If your event is well-formatted and valid, you’ll receive a response like this:

{
    "data": {
        "message": "Successfully processed 1 conversion events."
    }
}
Custom conversion events

To send a custom conversion event, set tracking_type to "CUSTOM" and assign custom_event_name to a value that doesn’t match our pre-existing events. This free-form and case-sensitive value may use any UTF-8 character up to 64 characters, including spaces. For example, Promotion Event and PromotionEvent will be considered two distinct events.

Only the 20 most recent custom events will be visible on the dashboard.

Custom conversion event

Fill in fields to build the events payload for a custom conversion event
json
Fill all fields
"events": [ {
  "event_at": ,
  "action_source": "",
  "type": {
      "tracking_type": "CUSTOM",
      "custom_event_name": ""
  }
} ]
Domain detection

event_source_url can be provided to extract the domain. This is recommended to better understand the source of your WEBSITE events.

Include click ID in the URL to improve attribution accuracy. This will be used when the click_id parameter isn't provided.

Set up event source URL

json
"events": [
    {
    "event_at": ,
    "event_source_url": "",
    "action_source": "",
    "type": {
        "tracking_type": "",
        "custom_event_name": ""
    }
  }
]
Action source

Action source identifies whether a conversion happened online, offline, or through another source. This is used for source-level conversion metrics in reporting.

Set this required parameter in "events":

"events": [ {
    "action_source": "WEBSITE",
    ...
} ]

Event deduplication applies only for events in the same channel.

Match keys

Match keys are identifiers you can share with conversion events and are crucial to help match conversions to a Reddit Ads engagement, like a view or click. To increase attribution accuracy, we strongly recommend sharing as many signals as possible.

You can set up these parameters in "events":

Send match keys

All optional. At least email + phone number is recommended. May provide some values hashed.
json
"events": [ {
  "click_id": "",
  "user": {
      "ip_address": "",
      "user_agent": "",
      "screen_dimensions": {
          "width": ,
          "height":

      },
      "uuid": "",
      "email": "",
      "phone_number": "",
      "external_id": "",
      "idfa": "",
      "aaid": ""
  }
} ]

Some signals can be shared unhashed or pre-hashed. If you’d like to hash signals, we recommend using SHA-256 and following the hashing guidance.

Hashing email addresses

Email addresses should be formatted like example@email.com. Events with invalid values—such as ‘First Last’ <example@email.com>—will still be accepted, but a warning will appear in the Events Manager.

The email address must be canonicalized before hashing:

  • the address should be lowercase
  • the local part of the address should have any dots removed, and any text after a plus sign should be removed
  • SHA-256 should be used to hash the identifier, and 64 lowercase hex digits should be given

For example, alice@example.com and Al.ice+Apple@Example.Com should both hash to ff8d9819fc0e12bf0d24892e45987e249a28dce836a85cad60e28eaaa8c6d976.

Here’s a breakdown for the example of Al.ice+Apple@Example.Com:

  • the address should be lowercase (Al.ice+Apple@Example.Com becomes al.ice+apple@example.com)
  • the local part of the address should have any dots removed, and any text after a plus sign should be removed (al.ice+apple@example.com becomes alice@example.com)

Hashing phone numbers

Phone numbers should be formatted like +15554441234. Events using invalid formats—like +1 (555) 444-1234—will still be accepted, but a warning will appear in the Events Manager.

The phone number must be canonicalized before hashing:

  • must contain the country and area code
  • remove the extension
  • remove all non-numeric characters, including spaces, symbols, and letters
  • the number should start with +
  • SHA-256 should be used to hash the identifier, and 64 lowercase hex digits should be given

For example, +15554441234 and +1 (555) 444-1234 should both hash to e5b124c58580eb16bd959b8d0cac12b12c952e2ceae0203d416cff94f10b994a.

Here’s a breakdown for the example of +1 (555) 444-1234 ext. 789:

  • remove the extension (+1 (555) 444-1234 ext. 789 becomes +1 (555) 444-1234)
  • remove non-numeric characters (+1 (555) 444-1234 becomes 15554441234)
  • ensure it starts with + (15554441234 becomes +15554441234)

Hashing MAIDs

When passing an IDFA or AAID directly, it should follow the standard format. Events with invalid IDs—such as placeholder 00000000-0000-0000-0000-000000000000—will still be accepted, but a warning will appear in the Events Manager.

If you choose to pre-hash the identifier, it should follow a canonical format:

  • an IDFA should be uppercase hex digits
  • an AAID should be lowercase hex digits
  • the dashes should be included
  • SHA-256 should be used to hash the identifier and 64 lowercase hex digits should be given

For example:

  • an IDFA of EA7583CD-A667-48BC-B806-42ECB2B48606 can be hashed to 70574fa9c8f498a7b2e5c8712b1126de7b1406fd02fdc591821c5bd33092fd1c
  • an AAID of cdda802e-fb9c-47ad-9866-0794d394c912 can be hashed to f23b554b2a8fb732a8b973733832e70f018da7bc294dfea289735a07d5dd2c9f

Hashing external ID

An advertiser-assigned custom identifier. We recommend passing an external ID with its corresponding click ID whenever possible.

  • Example (unhashed): customer12345
  • Example (hashed): a4cc2fc5adf58a029291c1514d273989113a1d05e1d753c1d0c3a848af7109cc
Event metadata

Event metadata is detailed information associated with specific actions or events. Setting up metadata shares more performance insights, and using a consistent conversion_id is crucial when using both the Pixel and CAPI for deduplication purposes.

We strongly recommend setting up conversion_id when using both Pixel and Conversions API. conversion_id signals can be shared unhashed or pre-hashed. If you’d like to hash it, we recommend using SHA-256.

You can set up event metadata by adding additional parameters to "metadata":

quantity and item_price are not replacements for item_count and value, which are used for optimization and strongly recommended for revenue-related events.

Send event metadata

All optional.
json
"events": [ {
  "metadata": {
      "item_count": ,
      "currency": "",
      "value": ,
      "conversion_id": "",
      "products": [ {
          "id": "",
          "name": "",
          "category": "",
          "quantity": ,
          "item_price":

      } ]
  }
} ]
Opt out users

We offer the data_processing_options parameter to help your compliance needs, including opting out users if they have not consented to behavioral targeting. Learn more about Limited Data Use (LDU).

Set up LDU

Mode is fixed. Country is required. Region is optional.
json
"events": [ {
  "user": {
      "data_processing_options": {
          "modes": [ "LDU" ],
          "country": "",
          "region": ""
      }
  }
} ]

4. Set up deduplication​

Did you set up event deduplication with the conversion ID? Check out the event deduplication panel for details on deduplication effectiveness.

If you implement both the Reddit Pixel and CAPI and the same events are shared across both sources, deduplication is necessary to prevent double-counting. Deduplication occurs every hour. When duplicates are detected, the event(s) with less event metadata and match keys be marked as a duplicate(s).If all events are of equal quality, the earliest event(s) will be preferred.

Reddit supports two methods: conversion ID and session-based deduplication. For deduplication to occur, events must match one of these methods and be of the same event type. For custom events, the event name must also match. Events that meet these conditions will be evaluated for deduplication. A log of deduplicated events is available for up to seven days.

Events must be sent within two days for proper deduplication.

If you share different conversion events for the Reddit Pixel and Conversions API, you don’t have to worry about deduplication.

This method is always preferred when a conversion ID is provided.

View your deduplication details in the deduplication panel.

You can pass a unique conversion ID through the Pixel and CAPI for every distinct conversion event. When this method is chosen, the event with the lower quality will be marked as a duplicate. If equal, the later event will be considered a duplicate.

This method is the most accurate way to ensure proper deduplication and minimize the risk of integration errors and attribution inaccuracies.

To ensure your events are deduplicated:

  • Create a unique conversion ID for every distinct conversion event. You can set this as a random number or ID. Similarly, you could set this to the order number when tracking purchase events. Learn more about generating unique conversion IDs.
  • Include the event in the Reddit Pixel and CAPI.
  • Ensure the conversion ID for its corresponding events matches.

    If the conversion ID is improperly passed to too many multiple events, those events will be marked as duplicates and will not be attributed, impacting campaign performance.

Session-based deduplication (default)​

This method isn’t used when a conversion ID is provided, and it won’t mark events as duplicates if they’re sent only from the Pixel or only from CAPI.

This deduplication method determines which source—the Pixel or CAPI—is providing higher-quality events within a session. A session is a series of events from a single user where no more than five minutes pass between two consecutive events.

To enable deduplication, include either a UUID or external ID on all Pixel and CAPI events. We recommend choosing UUID since it’s automatically passed with Pixel events.

When this deduplication method is used, an integration type–CAPI or the Pixel–is selected for each session based on the number of attributable events, or the source that sent the earliest event if both are equal.

The events from the selected source will be used for attribution. The other events will be filtered out to keep your reporting accurate.

Generate unique conversion IDs​

We recommend generating the conversion ID based on attributes unique to each event. For example, you could set it as the hash of the timestamp, event type, metadata parameters, and user parameters. This way, there will be a unique conversion ID for each unique event, removing the risk of mistakenly deduplicating them.

Here’s one way you can do this in JavaScript:

const crypto = require('crypto');

function generateConversionID(event_at, tracking_type, metadata_value, ip_address) {
    // Concatenate the input values
    const inputString = event_at + tracking_type + metadata_value + ip_address;

    // Create a SHA-256 hash of the concatenated string
    const hash = crypto.createHash('sha256');
    hash.update(inputString);

    // Return the hash in hexadecimal format
    return hash.digest('hex');
}

// Example usage
const event_at = 1735707600;
const tracking_type = 'PURCHASE';
const metadata_value = '100.00';
const ip_address = '192.168.1.1';

const conversionID = generateConversionID(event_at, tracking_type, metadata_value, ip_address);

console.log('Generated Conversion ID:', conversionID);

Things to know​

  • Events must be sent within two days to ensure proper deduplication.
  • When deduplicating using conversion ID, the event with more event metadata and match keys is preferred.
  • Deduplication isn’t necessary when sharing different events with the Reddit Pixel and CAPI.
  • If a conversion ID is used for both integration types, that method will be preferred. Otherwise, session-based deduplication will apply.
  • View reporting for your events either on the dashboard or with Get a Report.
